Meadowlark Optics
Eigenstate Calibration Set
Previous
Next
KEY FEATURES
- Compact
- No moving parts
- Broad wavelength range
- Fiber and free space versions
- Visible and near infrared versions
Eigenstate Calibration Set
Data Sheet
Description
Specs
Ordering Info
Resources
Data Sheet
Use the arrow icon below the preview to enlarge the pdf. Escape key exits fullscreen. Download Data Sheet
[dflip id=”3189″ ][/dflip]
Description
Meadowlark Optics Eigenstate Calibration Set is a tool which produces six polarization eigenstates: linear polarized light at 0, 90, +45, -45 degrees as well as circular right-handed and left-handed polarized light.

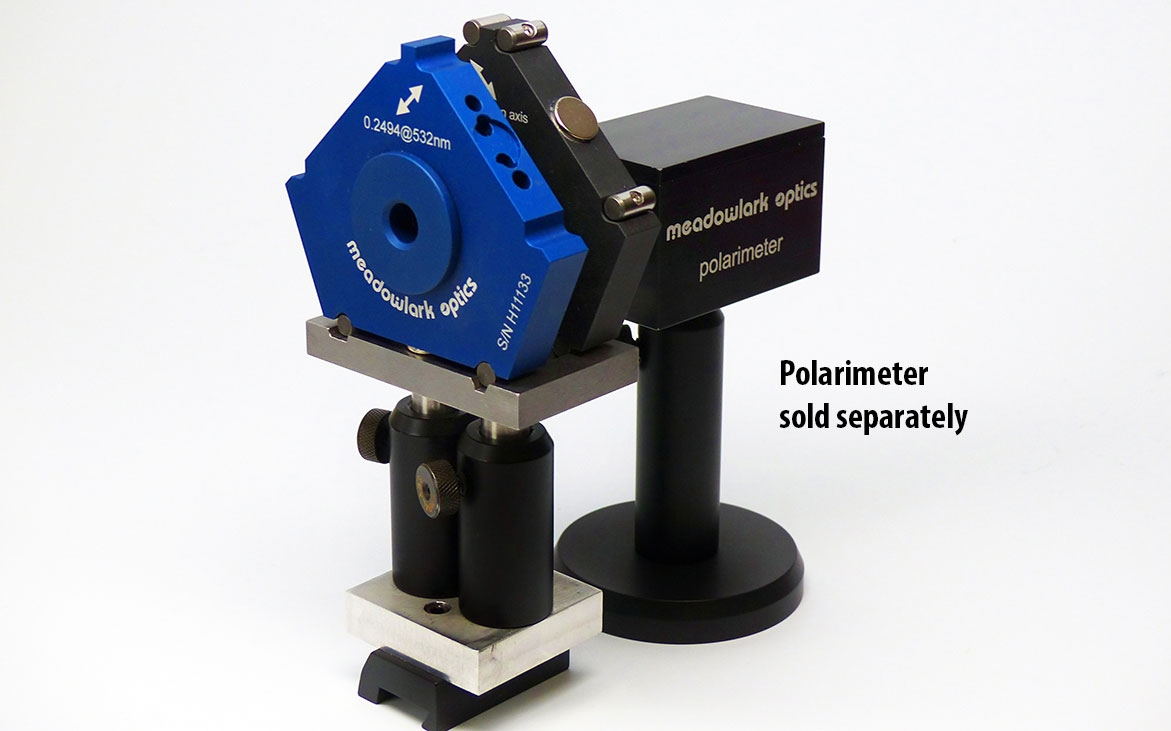

These states are created by using a precision dichroic linear polarizer in a black housing and a precision quarter waveplate in a blue housing. The housings are CNC machined so that the accuracy of the angles is better than 1 arc minute. Pins on the housings mate to a v-groove and a flat groove in a quasi-kinematic fashion, while magnets provide holding force. This scheme facilitates precise, simple and fast indexing of the polarization eigenstates. Large arrows on the housing indicate the transmission axis of the polarizer and the fast axis of the waveplates for ease of use. Available for wavelength ranges from 450-1700 nm.
Eigenstate Retarders are additional retarders that can be purchased at the same time as your Eigenstate Calibration Set and Polarimeter. Wavelengths available from 450-1700 nm.
Applications
- Ellipsometry
- Polarization control
- Polarization analysis
- Calibration accessory for
PMI Series polarimeters
Specs
| SPECIFICATIONS FOR MONOCHROMATIC EIGENSTATE CALIBRATION SET | |
| Retardance Accuracy | λ/350 |
| Thickness | 0.79 ± 0.015 in (20.06 ± 0.38 mm) |
| Clear Aperture | 0.32 in ( 8.13 mm) |
| SPECIFICATIONS FOR BROADBAND EIGENSTATE CALIBRATION SET | |
| Wavelength Range – VIS | 450 – 800 nm |
| Wavelength Range – NIR | 690 – 1200 nm |
| Wavelength Range – IR | 1100 – 1700 nm |
| Retardance Accuracy | λ/200 |
| Thickness | 1.10 ± 0.02 in (27.94 ± 0.51 mm) |
| Clear Aperture | 0.197 in ( 5.0 mm) |
Ordering Info
| (Please specify your operating wavelength λ in nm when ordering) | |
| CALIBRATION SETS (POLARIZER AND RETARDER) | |
| Item | Part Number |
| Single Wavelength Eigenstate Calibration Set | ECS – λ |
| Broadband Eigenstate Calibration Set – VIS | ECS – VIS |
| Broadband Eigenstate Calibration Set – NIR | ECS – NIR |
| Broadband Eigenstate Calibration Set – IR | ECS – IR |
| CALIBRATION RETARDERS OR POLARIZERS (INDIVIDUAL COMPONENTS) | |
| Item | Part Number |
| Single Wavelength Eigenstate Retarder | EGR – λ |
| Broadband Eigenstate Polarizer (450 – 1700 nm) | EGP – GTP |
| Achromatic Eigenstate Retarder – VIS (450 – 800 nm) | EGR – VIS |
| Achromatic Eigenstate Retarder – NIR (690 – 1200 nm) | EGR – NIR |
| Achromatic Eigenstate Retarder – IR (1100 –1700 nm) | EGR – IR |
