Liquid Crystal Devices
Meadowlark Liquid Crystal Components - What to Expect
- Industry-Leading Metrology – Meadowlark is the most experienced manufacturer of precision liquid crystal devices.
- Proprietary Measurement Techniques – extremely accurate calibration for every liquid crystal device we ship.
- High Quality and Precision – key performance features to be considered: wavelength dependence, temperature sensitivity, laser damage threshold, response time, and aperture size.
- Liquid Crystal Selection Guide – an at-a-glance review of our standard LC devices.
- Meadowlark Solutions Engineers – happy to assist you in selecting an LC component or controller that works for your application.
- Custom Solutions – While we are delighted to provide you with standard components or systems (see below), we are also happy to customize a solution for you: switching speeds, retardance values, wavelength ranges, coatings, sizes, and shapes can all be modified to your specifications.
What Liquid Crystals Do
Liquid crystal (LC) is a unique substance that shares properties of both liquids and solid crystals. It can flow like a liquid, but its molecules can be organized like a crystal. There are many kinds of LC phases, which we can tell apart by their optical properties. The differences in these properties are due to the orientation of the molecules within the material.
Not all LC materials will always be in an LC state, just like water can be in the form of ice or vapor. There are three main types of liquid crystals: thermotropic, lyotropic, and metallotropic. The simplest kind of liquid crystal phase is the nematic phase. In this phase, the molecules align parallel to each other but are free to flow and their positions are randomly distributed, similar to a liquid.
The chiral nematic phase is another type of LC phase that shows chirality, or handedness. This was first seen in cholesterol derivatives, so it’s often called the cholesteric phase. Only chiral molecules can create such a phase. In this phase, the molecules twist in a direction perpendicular to the director, which results in a longer-range chiral order.
In the smectic C* phase, the molecules are ordered in layers and are tilted at a certain angle. This tilt creates a spiral twist of the molecular axis, so they are also known as twisted nematics.
Chiral liquid-crystal molecules usually create chiral mesophases, meaning the molecule must have some form of asymmetry. But the system can’t be racemic, meaning it can’t be a mix of right- and left-handed molecules, because that would cancel out the chiral effect. However, adding a small amount of chiral dopant to an achiral mesophase can make the system overall chiral.
Chiral phases usually have a helical twist of the molecules. If the twist is about the same size as the wavelength of visible light, it can create interesting optical interference effects. The twist in chiral LC phases also makes the system react differently to right- and left-handed circularly polarized light, meaning they can be used as polarization filters.
Click the options below for liquid crystal components designed and perfected by Meadowlark Optics. Each product page includes a data sheet and links to more resources. Meadowlark currently offers online shopping in the United States only. We are happy to quote for your unique international location. Have questions? Contact us! We are happy to help!
Binary Liquid Crystal Rotator
High polarization purity Silent, vibration-free Low-voltage operation Broad thermal range Faster switching...
DetailsFerroelectric Liquid Crystal Controller
Broadband performance Extremely fast switching speeds Silent, vibration‐free Low‐voltage operation OEM sizes...
DetailsFerroelectric Optical Shutter
Broadband performance Extremely fast switching speeds Silent, vibration‐free Low‐voltage operation OEM sizes...
DetailsFerroelectric Polarization Rotator, Binary
Broadband performance Extremely fast switching speeds Silent, vibration‐free Low‐voltage operation OEM sizes...
DetailsHigh Contrast Optical Shutter
High contrast No mechanical motion Computer control capacity No vibration This liquid...
DetailsHigh-Speed LCVR, Optical Head Only, Two-Inch
Sub-millisecond speeds Standard LC Drive Schemes Includes heated housing Precision non-mechanical retardation...
DetailsHigh-Speed Liquid Crystal Digital Interface Controller
Two channels of voltage and temperature sensing & control (TSC) USB-powered (unless...

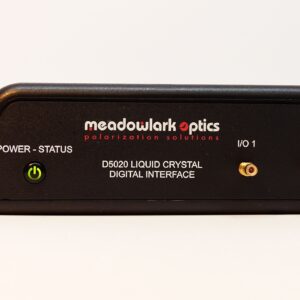

DetailsLiquid Crystal Digital Interface Controller
Two channels of voltage and temperature sensing & control (TSC) USB-powered (unless...
DetailsLiquid Crystal Digital Interface Controller, 20V Version
Two channels of voltage and temperature sensing & control (TSC) USB-powered (unless...
DetailsLiquid Crystal Polarization Rotator, Continuous
High power capability High polarization purity Computer control capability 180-degree polarization rotation...
DetailsLiquid Crystal Variable Attenuator
High contrast ratio Computer control capabilities Continuous control of light intensity Meadowlark...
DetailsLiquid Crystal Variable Retarder
Computer control capability Temperature control options Usable from 450 to 1800 nm...
DetailsOEM Liquid Crystal Variable Waveplate (QTY 20 minimum)
Precision control at lower cost Scalable quantities (minimum order of 20) Thin...
DetailsSMA-to-SMB Cable – Electronics Adapter
6 ft (2 m) SMA-to-SMB Cable - Electronics Adapter
DetailsTemperature Sensing and Control for Liquid Crystal Devices
Stand Alone LED Display 1 Channel Temperature Control The Meadowlark Optics TC3051...
DetailsUV Liquid Crystal Variable Waveplate
Phase of Amplitude modulation of UV spectrum Analog modulation Non-mechanical polarization control...
Details
