$3,608.00 – $4,895.00
FEATURES
- Broadband performance
- Extremely fast switching speeds
- Silent, vibration‐free
- Low‐voltage operation
- OEM sizes and shapes
- No mechanical motion
Product Details
Filters Sort results
Reset Apply
Name | Item # | Size | Wavelength | Lead Time | Price | Add to cart |
|---|---|---|---|---|---|---|
FPA-100-1550 | 1.000 in. (25.40 mm) | 1550 | 6-8 weeks | $4,015.00 | ||
FCS-200-𝜆 | 2.000 in. (50.80 mm) | Specify Custom λ 450-720 | 6-8 weeks | $4,345.00 | ||
FCS-100-𝜆 | 1.000 in. (25.40 mm) | Specify Custom λ 450-720 | 6-8 weeks | $3,570.00 | ||
FPA-200-λ | 2.000 in. (50.80 mm) | Specify Custom λ 405-850 | 6-8 weeks | $4,895.00 | ||
FPA-100-λ | 1.000 in. (25.40 mm) | Specify Custom λ 405-850 | 6-8 weeks | $4,015.00 | ||
FPR-200-λ | 2.000 in. (50.80 mm) | Specify Custom λ 405-850 | 6-8 weeks | $4,400.00 | ||
FPR-100-λ | 1.000 in. (25.40 mm) | Specify Custom λ 405-850 | 6-8 weeks | $3,608.00 | ||
FPA-200-1550 | 2.000 in. (50.80 mm) | 1550 | 6-8 weeks | $4,895.00 | ||
FPA-200-1064 | 2.000 in. (50.80 mm) | 1064 | 6-8 weeks | $4,895.00 | ||
FPA-200-785 | 2.000 in. (50.80 mm) | 785 | 6-8 weeks | $4,895.00 | ||
FPA-200-632.8 | 2.000 in. (50.80 mm) | 632.8 | 6-8 weeks | $4,895.00 | ||
FPR-100-632.8 | 1.000 in. (25.40 mm) | 632.8 | 6-8 weeks | $3,608.00 | ||
FPA-100-1064 | 1.000 in. (25.40 mm) | 1064 | 6-8 weeks | $4,015.00 | ||
FPA-100-785 | 1.000 in. (25.40 mm) | 785 | 6-8 weeks | $4,015.00 | ||
FPA-100-632.8 | 1.000 in. (25.40 mm) | 632.8 | 6-8 weeks | $4,015.00 | ||
FPR-200-1550 | 2.000 in. (50.80 mm) | 1550 | 6-8 weeks | $4,400.00 | ||
FPR-200-1064 | 2.000 in. (50.80 mm) | 1064 | 6-8 weeks | $4,400.00 | ||
FPR-200-785 | 2.000 in. (50.80 mm) | 785 | 6-8 weeks | $4,400.00 | ||
FPR-200-632.8 | 2.000 in. (50.80 mm) | 632.8 | 6-8 weeks | $4,400.00 | ||
FPR-100-1550 | 1.000 in. (25.40 mm) | 1550 | 6-8 weeks | $3,608.00 |
Ferroelectric Polarization Rotator, Binary
Data Sheet
Description
Specs
Resources
Data Sheet
Use the arrow icon –
– below the preview to enlarge the pdf. Escape key exits fullscreen. Download Data Sheet
Description
Meadowlark Optics’ Achromatic Ferroelectric Polarization Rotator features high speed and exceptional polarization purity over broad wavelength ranges. FLC devices offer a significant performance advantage in optical shutter and rotator applications demanding the fastest optical response times available.
Since these devices are solid state, undesirable mechanical motion, associated noise, and vibration problems are eliminated. Key features of our FLC devices include 100-microsecond switching speed, high contrast linearly polarized output, and operation over the widest wavelength range available.
Typical applications of the FLC Achromatic Rotator include single-camera 3D video capture, broadband phase modulators, beam steering, and polarimetry. Achromatic rotators are not limited to visible spectrum; we can design and build them in the near-infrared as well.
Specs
FERROELECTRIC POLARIZATION ROTATOR COMMON SPECIFICATIONS
- Retarder Material: Ferroelectric liquid crystal
- Substrate Material: Fused silica
- Transmitted Wavefront Distortion: λ/2 (P‐V @ 633), λ/8 (RMS @ 633)
- Surface Quality: 60 –40 scratch‐dig
- Beam Deviation: ≤ 5arc min
- Outside Diameter (mounted): 2.00 ±0.005 in. (please inquire about custom sizes)
- Clear Aperture: 0.70 in. (17.8 mm)
- Response Time (10‐90% & 90‐10%): ≤100 µs at room temp, wavelength dependent
- Operating Temperature: 20˚C to 30˚C
- Storage Temperature: 0˚C to 60˚C
- Driver Requirements ±5 to 30Volts, 50% duty cycle
FERROELECTRIC OPTICAL SHUTTER COMMON SPECIFICATIONS
- Polarizer Material: Dichroic Polymer
- Transmission (please inquire about higher transmission options): ≥ 30%(typical, unpolarized light), ≥ 65% (typical, polarized light)
- Transmitted Wavefront Distortion: λ/2 (P‐V @ 633), λ/8 (RMS @ 633)
- Contrast Ratio: ≥ 200:1

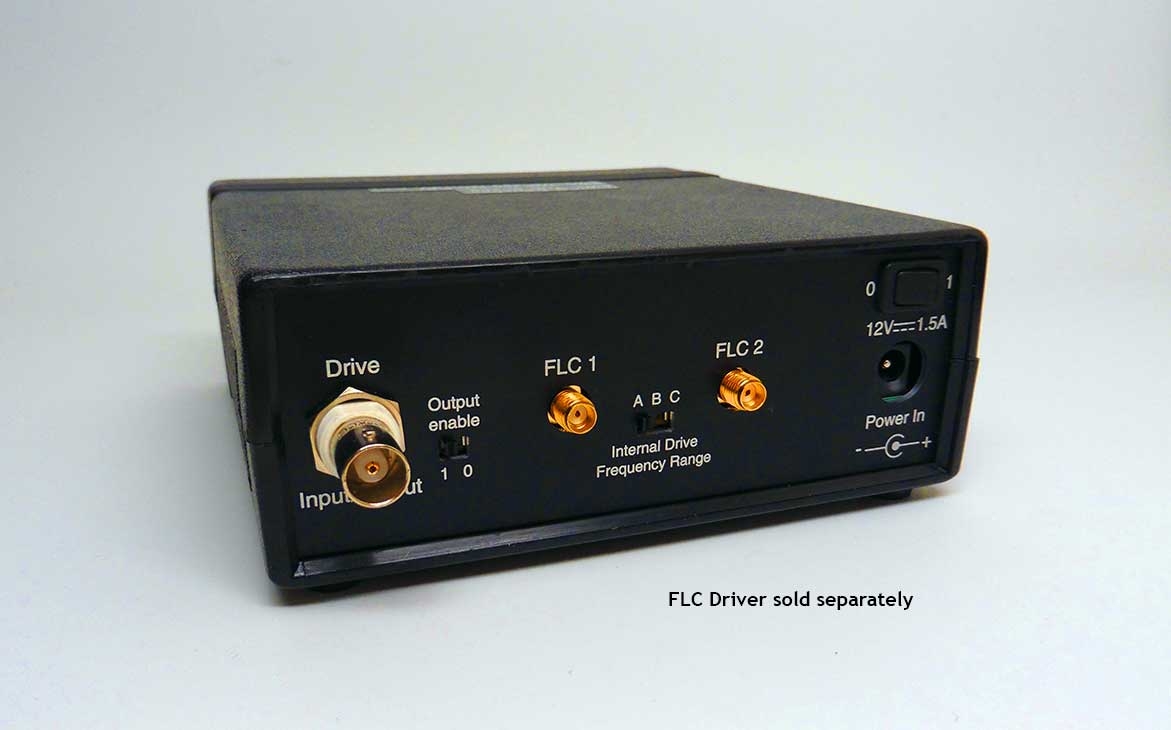

FERROELECTRIC LIQUID CRYSTAL CONTROLLER SPECIFICATIONS
- Dimensions: 5.3 in. W x 5.3 in. L x 2.0 in. H 13.5 cm W x 13.5 cm L x 5.1 cm H
- Number of LC Channels: Two, running identical programs 180˚ out of phase
- Output Waveform: Bipolar±15V peak voltage, ±10V holding voltage
- Amplitude Resolution: 16‐bit; 1 mV voltage resolution
- Internal Drive: 1 to 10,000 Hz, 50% duty cycle, frequency controlled by front‐panel 10‐turn knob
Filters Sort results
Reset Apply
Name | Item # | Dimensions | Wavelength | Range | Clear Aperture | Thickness |
|---|---|---|---|---|---|---|
1.000 in. (25.40 mm) | 1550 | 405-850 | 0.370 in. (9.4 mm) | 1.230 in. (31.24 mm) | ||
2.000 in. (50.80 mm) | Specify Custom λ 450-720 | 450-720 | 0.700 in. (17.8 mm) | 1.125 in. (28.58 mm) | ||
1.000 in. (25.40 mm) | Specify Custom λ 450-720 | 450-720 | 0.370 in. (9.4 mm) | 1.415 in. (35.94 mm) | ||
2.000 in. (50.80 mm) | Specify Custom λ 405-850 | 405-850 | 0.700 in. (17.8 mm) | 1.380 in (35.05 mm) | ||
1.000 in. (25.40 mm) | Specify Custom λ 405-850 | 405-850 | 0.370 in. (9.4 mm) | 1.230 in. (31.24 mm) | ||
2.000 in. (50.80 mm) | Specify Custom λ 405-850 | 405-850 | 0.700 in. (17.8 mm) | 1.380 in (35.05 mm) | ||
1.000 in. (25.40 mm) | Specify Custom λ 405-850 | 405-850 | 0.370 in. (9.4 mm) | 1.230 in. (31.24 mm) | ||
2.000 in. (50.80 mm) | 1550 | 405-850 | 0.700 in. (17.8 mm) | 1.380 in (35.05 mm) | ||
2.000 in. (50.80 mm) | 1064 | 405-850 | 0.700 in. (17.8 mm) | 1.380 in (35.05 mm) | ||
2.000 in. (50.80 mm) | 785 | 405-850 | 0.700 in. (17.8 mm) | 1.380 in (35.05 mm) | ||
2.000 in. (50.80 mm) | 632.8 | 405-850 | 0.700 in. (17.8 mm) | 1.380 in (35.05 mm) | ||
1.000 in. (25.40 mm) | 632.8 | 405-850 | 0.370 in. (9.4 mm) | 1.230 in. (31.24 mm) | ||
1.000 in. (25.40 mm) | 1064 | 405-850 | 0.370 in. (9.4 mm) | 1.230 in. (31.24 mm) | ||
1.000 in. (25.40 mm) | 785 | 405-850 | 0.370 in. (9.4 mm) | 1.230 in. (31.24 mm) | ||
1.000 in. (25.40 mm) | 632.8 | 405-850 | 0.370 in. (9.4 mm) | 1.230 in. (31.24 mm) | ||
2.000 in. (50.80 mm) | 1550 | 405-850 | 0.700 in. (17.8 mm) | 1.380 in (35.05 mm) | ||
2.000 in. (50.80 mm) | 1064 | 405-850 | 0.700 in. (17.8 mm) | 1.380 in (35.05 mm) | ||
2.000 in. (50.80 mm) | 785 | 405-850 | 0.700 in. (17.8 mm) | 1.380 in (35.05 mm) | ||
2.000 in. (50.80 mm) | 632.8 | 405-850 | 0.700 in. (17.8 mm) | 1.380 in (35.05 mm) | ||
1.000 in. (25.40 mm) | 1550 | 405-850 | 0.370 in. (9.4 mm) | 1.230 in. (31.24 mm) |
